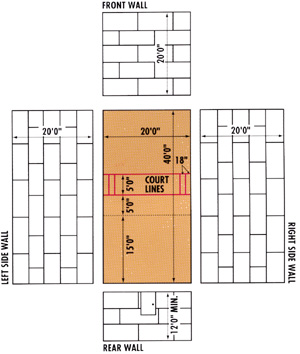

20' W X 40' L X 20' H
Rough Framing Dimensions:
Length:
40' 2-1/4" from face of front wall studs to face of rear wall studs
Width:
20' 2" from face of left wall studs to face of right side wall studs
Height:
20' 2" from slab to bottom of ceiling joists
* Note: Although an exact finished dimension of 20'x40'x20' is preferred, U.S.R.A. allows a tolerance of +/- 4.8" in length, +/- 3" in width, and +/- 3" in height to accommodate certain space restrictions.
|
|
|
21' W X 32' L X 20' H
Rough Framing Dimensions:
Length:
32' 2-1/4" from face of front wall studs to face of rear wall studs
Width:
21' 2" from face of left wall studs to face of right side wall studs
Height:
20' 2" from slab to bottom of ceiling joists
*Note: Above dimensions based on using FiBERESiN 1 1/8" 65#/CF density front wall panel and 13/16 inch panel: 63#/CF density side and rear wall panel. WSF certified courts use 1-7/16" FiBERESiN front wall panel and 1-1/8" FiBERESiN side and rear wall panel requiring appropriate framing dimension adjustments.

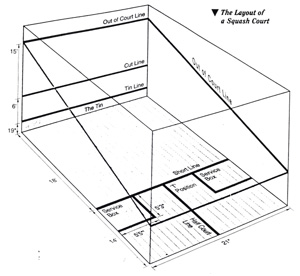

Minimum height requirements for International Squash is 18'6" from finish floor height to bottom of ceiling or hanging lights. We recommend a finished court height of 20'0".
|
|
 |
| |
|
|
